tcp.h File Reference

socket API More...

#include <netdb.h>
#include <openssl/ssl.h>
#include <openssl/types.h>
#include <stdbool.h>

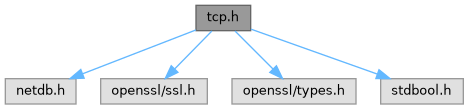

Include dependency graph for tcp.h:

Go to the source code of this file.

Macros
#define	MAX_HOSTNAME_LENGTH   255

Functions
int	tcp_getaddrinfo (const char *hostname, const char *port, struct addrinfo **addr)
	Write address info from HOSTNAME and PORT into ADDR.
int	tcp_socket (struct addrinfo *addrinfo)
	Open socket fd from ADDRINFO and return it.
int	tcp_connect (int fd, struct sockaddr *addr, socklen_t len, SSL **ssl, SSL_CTX **ctx, const char *hostname)
	connect() to socket FD using ADDR, optionally using TLS if TLS is not NULL.
ssize_t	tcp_send (int fd, const char *bytes, size_t len, SSL *ssl)
	Send LEN BYTES over tcp connection at FD, potentially writing over the TLS connection at SSL, if it exists.
ssize_t	tcp_recv (int fd, char *bytes, size_t len, SSL *ssl)
	Maybe recv LEN BYTES over the TCP connection at SSL, if it exists.
void	tcp_tls_free (SSL *ssl, SSL_CTX *ctx)
	Shutdown and free SSL and CTX.

Detailed Description

socket API

Function Documentation

tcp_connect()

int tcp_connect	(	int	fd,
		struct sockaddr *	addr,
		socklen_t	len,
		SSL **	ssl,
		SSL_CTX **	ctx,
		const char *	hostname
	)

connect() to socket FD using ADDR, optionally using TLS if TLS is not NULL.

Return values

0	OK
-1	Error connecting to socket
-2	Error with TLS connection

tcp_getaddrinfo()

int tcp_getaddrinfo	(	const char *	hostname,
		const char *	port,
		struct addrinfo **	addr
	)

Write address info from HOSTNAME and PORT into ADDR.

Return values

0	OK. Address Info written to ADDR.
22	EINVAL. At least one of HOSTNAME or PORT or ADDR is NULL.
ANYTHING_ELSE	Error. The return value of getaddrinfo() when non-zero.

tcp_recv()

ssize_t tcp_recv	(	int	fd,
		char *	bytes,
		size_t	len,
		SSL *	ssl
	)

Maybe recv LEN BYTES over the TCP connection at SSL, if it exists.

If SSL is NULL then tcp_recv() fallsback to plain recv() call to SOCKFD.

Return values

-1	ERROR - Neither the SOCKFD or SSL sockets can be written to.
(x	>= 0) OK - X bytes written out.

tcp_send()

ssize_t tcp_send	(	int	fd,
		const char *	bytes,
		size_t	len,
		SSL *	ssl
	)

Send LEN BYTES over tcp connection at FD, potentially writing over the TLS connection at SSL, if it exists.

If SSL is NULL, then tcp_send() fallsback to plain send() call to SOCKFD.

Return values

-1	ERROR - Neither the SOCKFD or SSL sockets can be written to.
x>=0	OK - x bytes written out.

tcp_socket()

int tcp_socket

(

struct addrinfo *

addrinfo

)

Open socket fd from ADDRINFO and return it.

Return values

-1	Error opening socket.
NONNEGATIVE	OK, a socket file descriptor.

tcp_tls_free()

void tcp_tls_free	(	SSL *	ssl,
		SSL_CTX *	ctx
	)

Shutdown and free SSL and CTX.

If both SSL and CTX are NULL, then this is a no-op.
